In this page, we introduce how to use dendroMix to summarize and select mixture models via dendrograms constructed from overfitted latent mixing measures.

library(dendroMix)
library(mclust)
library(ggplot2)
library(dplyr)
library(tidyr)

Generate data and estimated parameter of the overfitted model

We firstly simulate data from the mixture of 3 univariate normal distributions with the mixing proportions are $0.3, 0.4, 0.3$ , actual means are $-2, 0, 3$ , and the corresponding standard deviations are $0.5, 1, 0.7$ . We then start with using an overfitted of $k=10$ components and estimate the corresponding parameters using mclust package.

set.seed(1234)

# true mixture parameters
p_true <- c(0.3, 0.4, 0.3)      # mixing proportions
mu_true <- c(-2, 0, 3)           # means
sd_true <- c(0.5, 1, 0.7)        # standard deviations
sigma_true <- sd_true^2

# sample sizes
n = 500
z <- sample(1:3, size = n, replace = TRUE, prob = p_true)
X <- rnorm(n, mean = mu_true[z], sd = sd_true[z])

# visualization
# Create grid for density curves
dat <- data.frame(X = X)

# plotting grid
xgrid <- seq(min(X) - 1, max(X) + 1, length.out = 800)

# component densities *weighted by p*
dens_comp <- crossing(x = xgrid, comp = factor(c("1","2","3"))) |>
  mutate(mu = mu_true[as.integer(comp)],
         sd = sd_true[as.integer(comp)],
         p  = p_true[as.integer(comp)],
         density = p * dnorm(x, mu, sd))

# total mixture density
dens_total <- dens_comp |>
  group_by(x) |>
  summarise(density = sum(density), .groups = "drop")

# sensible histogram binwidth (Freedman–Diaconis)
bw <- 2 * IQR(X) / length(X)^(1/3)

ggplot() +
  geom_line(data = dens_total, aes(x = x, y = density), linewidth = 1.2) +
  geom_line(data = dens_comp, aes(x = x, y = density, color = comp),
            linewidth = 1, linetype = "dashed") +
  scale_color_manual(
    name = "Component",
    values = c(`1` = "#E41A1C", `2` = "#377EB8", `3` = "#4DAF4A")
  ) +
  labs(title = "Gaussian Mixture Model (True Density Overlay)", x = "X", y = "Density") +
  theme_minimal()

K = as.integer(8)
fit <- Mclust(X, G = K, modelNames = "V",
              initialization = list(hcPairs = hc(X), nstart=50),
              control = emControl(itmax=1000, eps=1e-10))
p_hat = fit$parameters$pro
mus_hat = fit$parameters$mean
sigmas_hat = fit$parameters$variance$sigmasq

Running dendroMix and visualizing the output

Given the output from mclust, we are ready to construct the dendrogram of mixing measures via dendroMix.

dmm = dendrogram_mixing(ps = p_hat,
                        thetas = mus_hat,
                        sigmas = sigmas_hat)

plot_dendrogram_mixing(dmm, main ="Dendrogram of mixing measure")

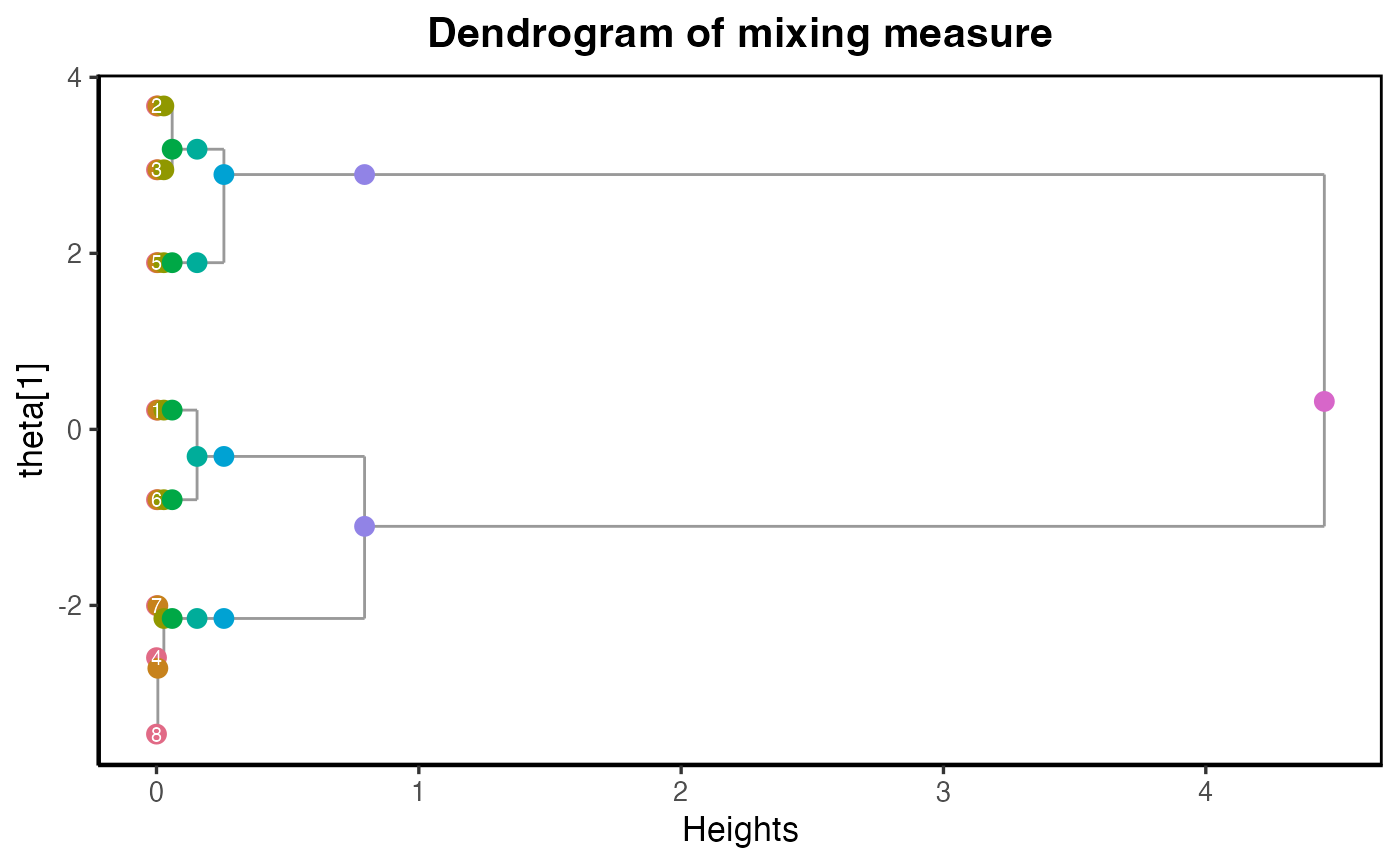

Dendrogram

The dendrogram plot shows the evidence of 3 Gaussian disstributions here. We can extract the dendrogram estimated parameters at this level.

#> [1] "The dendrogram estimated parameters at level k = 3"
#> [1] "Estimated mixing proportions:"
#> [1] 0.3666748 0.3550977 0.2782276
#> [1] "Estimated means:"
#>          1          2          4
#> -0.3073676  2.8953948 -2.1485151
#> [1] "Estimated sigma:"
#> [1] 0.5613664 0.6085194 0.2140256

p_hat = dmm$Gs[[K - 3 + 1]]$ps
mu_hat = dmm$Gs[[K - 3 + 1]]$thetas
sd_hat = dmm$Gs[[K - 3 + 1]]$sigmas
mix_components_df <- function(p, mu, sd, xgrid, label) {
  stopifnot(length(p) == length(mu), length(mu) == length(sd))
  K <- length(p)
  tibble(
    x = rep(xgrid, each = K),
    comp = factor(rep(seq_len(K), times = length(xgrid))),
    density = as.vector(sapply(seq_len(K), function(k) p[k] * dnorm(xgrid, mu[k], sd[k]))),
    model = label
  )
}

mix_total_df <- function(components_df) {
  components_df |>
    group_by(x, model) |>
    summarise(density = sum(density), .groups = "drop")
}

## ---- optional: align components by mean to mitigate label switching ----
align_by_mean <- function(p, mu, sd) {
  o <- order(mu)
  list(p = p[o], mu = mu[o], sd = sd[o])
}

## ---- build plotting data ----
# Grid
xgrid <- seq(min(X) - 1, max(X) + 1, length.out = 800)

# (Optional) Align both sets for cleaner visual comparison
# If you don't have true params, skip the "true" part.
if (exists("p_true")) {
  true <- align_by_mean(p_true, mu_true, sd_true)
  comp_true  <- mix_components_df(true$p, true$mu, true$sd, xgrid, "True")
  total_true <- mix_total_df(comp_true)
}

hat  <- align_by_mean(p_hat, mu_hat, sd_hat)
comp_hat  <- mix_components_df(hat$p, hat$mu, hat$sd, xgrid, "Estimated")
total_hat <- mix_total_df(comp_hat)

# Combine frames that exist
comp_all  <- bind_rows(if (exists("comp_true")) comp_true, comp_hat)
total_all <- bind_rows(if (exists("total_true")) total_true, total_hat)

# Sensible histogram binwidth (Freedman–Diaconis)
bw <- 2 * IQR(X) / length(X)^(1/3)

## ---- plot ----
ggplot() +
  # totals (thick solid)
  geom_line(data = total_all,
            aes(x = x, y = density, color = model),
            linewidth = 1.2) +
  # components (thinner, dashed/dotted)
  geom_line(data = comp_all,
            aes(x = x, y = density, color = model, linetype = model,
                group = interaction(model, comp)),
            linewidth = 0.9) +
  scale_color_manual(values = c("True" = "#377EB8", "Estimated" = "#E41A1C")) +
  scale_linetype_manual(values = c("True" = "dashed", "Estimated" = "dotted")) +
  labs(title = "Gaussian Mixture: True vs Estimated",
       x = "X", y = "Density", color = "Model", linetype = "Model") +
  theme_minimal(base_size = 14)

True vs estimated

In this plot,

The thick solid lines (red = Estimated, blue = True) show the total mixture density — the sum of all weighted Gaussian components for each model.
The dashed and dotted lines correspond to the individual mixture components (each Gaussian) within the true or estimated model:
- Dashed blue -> each true Gaussian component scaled by its weight.
- Dotted red -> each estimated Gaussian component scaled by its estimated weight.
